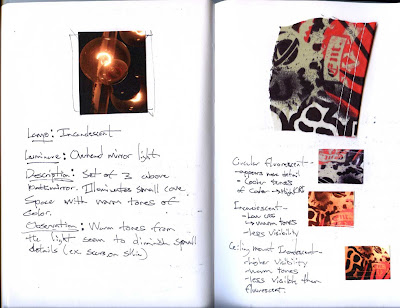

sketch series 3

sketch series 2

sketch series 1

lighting experience: critique space

While observing this room all parties experienced confusion and uneasiness due to lack of focal point. Because of the large skylight the room was completely washed out, allowing the occupant to have a dull perception of the room. The space contains too much overhead lighting and not enough spot lighting. The little contrast of white walls and light wood contribute to the dullness of the room.

We all feel the function of the space was not sufficiently addressed during the initial design process. The space would function better as a student lounge, or casual work space. Some possible lighting solutions would include some sort of electronic shade barrier on the ceiling or more spot lighting for wall presentations. Even some sort of contrasting permanent boards to present projects on would allow the room to feel more like it has a specific purpose, and would allow the occupants to feel more comfortable in the space.

M.A.C.C- Matter, Art, Creation, Convergence

This project was the first project that I designed completly digitally, however the design was drawn up and modfied many times before I went into sketchup and began creating the space. My intitial thought was that I wouldnt be able to show the enviroment that way I wanted it to feel by modeling it digitally. However I found that with the right approach and technique, and alot of patience...maybe even a week of sitting in the lab straight, you can easiely create a space that feels less bound by the confines of a digital program or look that it appears to have.

The concept behind the space is inovation through an artists personna. The space was given a label, which evolved into a more personal title as if the space were a person. Inside the space are all of the vital functions required for sustained living much as it were in a human being. The is also included space for the artist to work in involving steel fabrication and sculpture. This choice came partially because the original warehouse space struck me as an industrial haven. Then I also had to take in part of the influences I had as a designer, since I was designing for my own generation...and possibly the next.

• East section

• North section

• Main floor plan

• Loft plan

• Wall section reveals the fastened conrete anchor bolts supporting the 2" x 4" rosewood boards along the wall. The stairway platform will fit flush with the concrete wall just between each board; other additional support includes a central concrete wall that the stair case sits on top of.

• Isometric view of the entire complex where the apartment/loft space will be implemented

• Bedroom- recycled aerospace aluminum alloys

• Isometric view of all the interior components of the structure.

• walls- poured concrete, anchor bolted rosewood 2" x 4", buffed finish on concrete and patina finish on rosewood
• Entryway moment- recycled aluminum alloys

• countertop- 3form gunmetal 100 percent base

• Loft- poured concrete, applied aluminum, and polyurethane finish
• Entertainment station- oak veneer, applied chroma mineral by 3form, and black high gloss paint finish
• Desk- oak veneer, applied chroma mineral by 3form, and matte finish

3dps MAX...*grumble*...renderings

Podium Renderings

Messing with sketch up renderings

Dining Space Animation

Dining Space in Sketch-up

Magnetic Resonance

The Mayan spiritual bath requires one to gather four to nine leaves or flowers of their favorite plants and crush them up in a bucket of water. During the process of gathering and mixing into the bucket one is required to say small prayers to ensure the plant spirit of your intentions. After which, the bucket of water is washed in light for a few hours to allow all the oils to settle into the water. Finally the water is applied by pouring small amounts of the herbal fluid to the body. Once finished one should meditate and/or recognize the absence of negative energies.

- The Mayans referred this bath to anyone with a blockage in their chu' ulel (soul force). Mayan shamans believed that this bath would help revitalize the electro-magnetic field that surrounds our bodies and promotes the mind/body/soul.

Form:
This sketch model portrays that space as open, flat, and transparent into the exterior world. The absence of a roof plane is evident in order to bring the structures most important elements in which are water and earth.

Orthographics:

The floor plan examines the layout of tiles in the space. The tile are split by a pathway of water which then is connected through a series of earth magnets embedded into the floor. This allows the water to travel over the magnets and receive their energy (blessing) before moving on torwads the central cleansing ritual.

These elevations and wall sections show two ramps, one traversing the level changes and the second allowing access into the main bathing space.

Materials:

The Experience:

Inside users should expect to be guided through the top level and journey into the center without disruption of the physical body. These pathes and nodes shown in the floor tile act as the users guide torward harmony

Bathing: Sequence and Therapy

Bathing:

-The immersion of the body into a fluid, usually water

Forms:

- Mud bath provides mineral rich waters for the skin

- The Sauna also known as a sweat bath invigorates internal bodily functions much like exercising

- Hot water bathes to release toxins and decrease muscle tension

- Cold water bathes to prevent swelling by constricting blood vessels

- Social pools (self explanatory)

- Spiritual bathing usually involves special herbs or other additives for cleansing the mind, body, and soul.

Example of a Mayan spiritual bathing practice:

-The Mayan spiritual bath requires one to gather four to nine leaves or flowers of their favorite plants and crush them up in a bucket of water. During the process of gathering and mixing into the bucket one is required to say small prayers to ensure the plant spirit of your intentions. After which, the bucket of water is washed in light for a few hours to allow all the oils to settle into the water. Finally the water is applied by pouring small amounts of the herbal fluid to the body. Once finished one should meditate and/or recognize the absence of negative energies.

- The Mayans referred this bath to anyone with a blockage in their chu' ulel (soul force). Mayan shamans believed that this bath would help revitalize the electro-magnetic field that surrounds our bodies and promotes the mind/body/soul.

The Human Electro-Magnetic Field:

As most know the earth along with every living organism have a magnetic field. Every magnetic field has a positive and negative polarity. On a cellular level different chemical reactions within the body release charged particles. These charged particles create an electric field and due to the movement of these charged particles they create a magnetic field. Recent scientists have concluded that positive magnetic fields can create stress and disrupt metabolic functions within the body. Negative magnetic field have a beneficial effect on body by activating the hormone known as melatonin. Melatonin is an anti infectious, anitaging, stress reducing hormone. Sometimes negative magnetic fields can greatly increase the rate broken bones are healed along with other physical or emotional medical problems.
